AWS IoT Getting Started: MQTT sample

Posted on Edited on In Views: Word count in article: 416 Reading time ≈ 2 mins.

AWS IoT Getting Started: MQTT sample

AWS IoT Console

Using AWS IoT Console to manage IoT devices. In MQTT sample, we need to create a thing in console and setup policy, certificate, and keys.

Create a Thing

Devices connected to AWS IoT are represented by things in the AWS IoT registry. A thing represents a specific device or logical entity. It can be a physical device or sensor (for example, a light bulb or a switch on the wall). It can also be a logical entity, like an instance of an application or physical entity that does not connect to AWS IoT, but is related to other devices that do (for example, a car that has engine sensors or a control panel). (From Amazon docs)

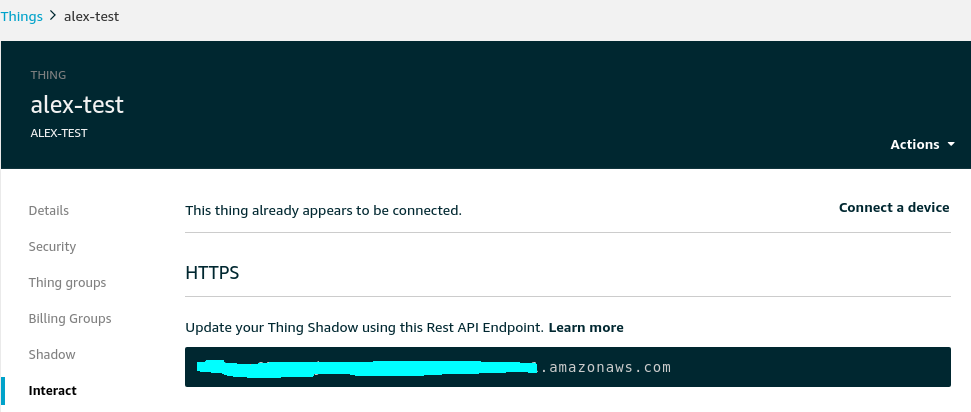

In AWS IoT Console, go to Manage->Things to create a thing. After that, in things details page Interact tab we can find the API endpoint for IoT device.

Certificates and keys

In AWS IoT Console, go to Secure->Certificates to create a certificate(One-click certificate creation are recommended):

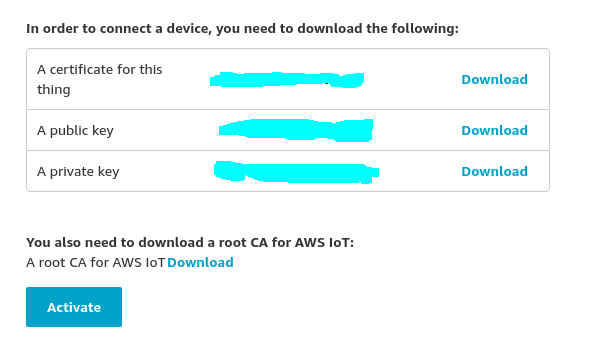

Then we need to download certificate, keys and root CA from this page:

AWS IoT SDK

AWS IoT SDK is the SDK for connecting to AWS IoT from a device using embedded C. Before porting to embedded platform, we can have a quick trial on a Linux based PC.

Dependencies

This SDK depends on MbedTLS. Files of MbedTLS need to copy to aws-iot-device-sdk-embedded-C/external_libs/mbedTLS/.

Modifications before building

MQTT sample code is under aws-iot-device-sdk-embedded-C/samples/linux/subscribe_publish_sample/. Before building, we need to do some modifications to make it work.

  • Copy the downloaded certificate, keys and root CA into aws-iot-device-sdk-embedded-C/certs/.
  • Modify /home/alex/data/aws/aws-iot-device-sdk-embedded-C/samples/linux/subscribe_publish_sample/aws_iot_config.h:
    • AWS_IOT_MQTT_HOST: Which is the API endpoint we got when created a thing
    • AWS_IOT_MY_THING_NAME: Should be same as the name we set when created a thing
    • AWS_IOT_ROOT_CA_FILENAME: File name of the rootCA we downloaded.
    • AWS_IOT_CERTIFICATE_FILENAME: File name of the device certificate we downloaded.
    • AWS_IOT_PRIVATE_KEY_FILENAME: File name of the private key we downloaded.

make and run

Device log:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Subscribing...
-->sleep
Subscribe callback
sdkTest/sub	hello from SDK QOS0 : 0
Subscribe callback
sdkTest/sub	hello from SDK QOS1 : 1
-->sleep
Subscribe callback
sdkTest/sub	hello from SDK QOS0 : 2
Subscribe callback
sdkTest/sub	hello from SDK QOS1 : 3
-->sleep
Subscribe callback
sdkTest/sub	hello from SDK QOS0 : 4
Subscribe callback

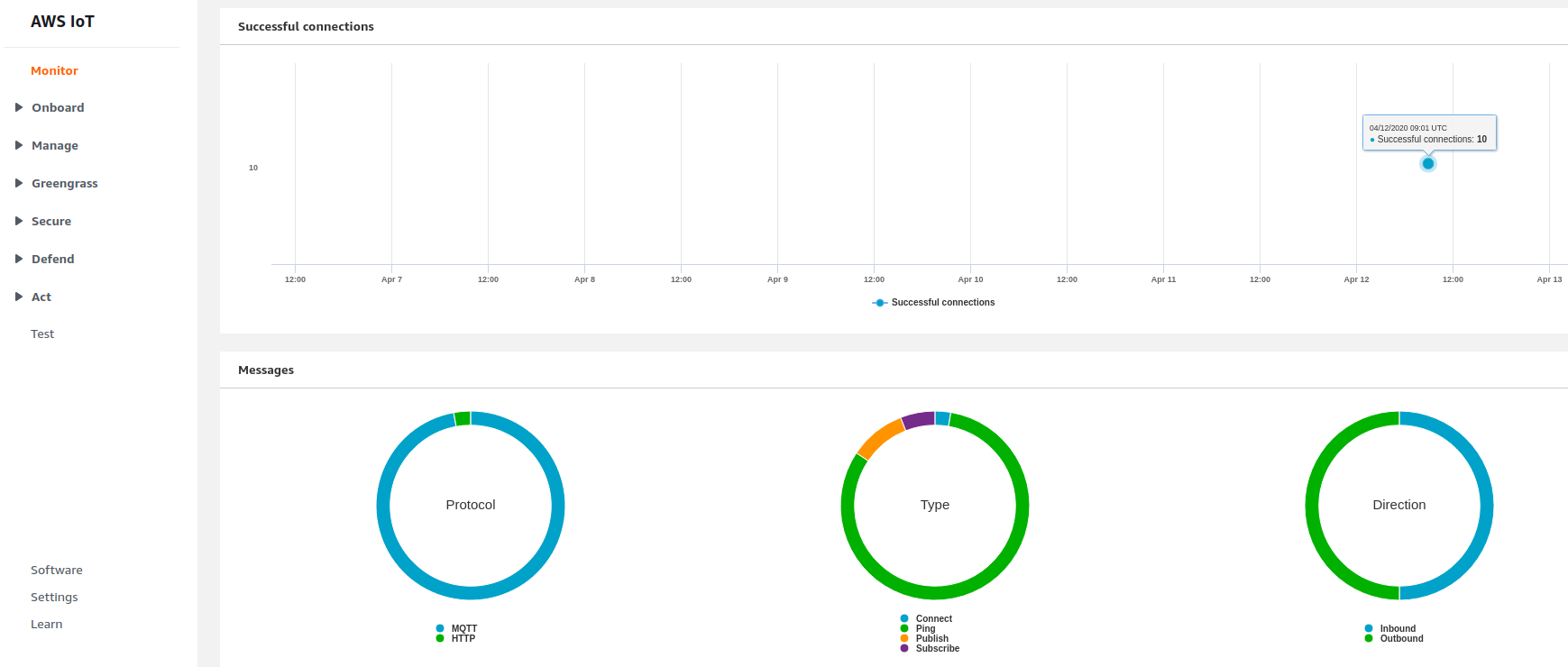

AWS IoT Console:
